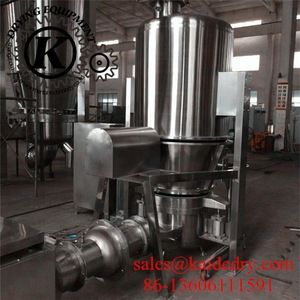

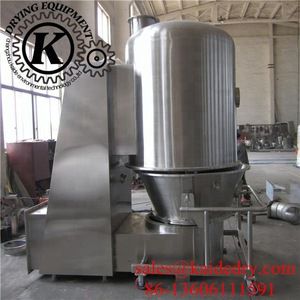

GFG Series High-Efficiency Fluid bed WDG Agricultural Dryer
Product Application
Mechanism screw extrusion particles, rock particles, high speed mixing wet granules.
medicine, food, feed, chemical and other fields wet granules dried and powdered materials.
large particles, small block, sticky block granular materials.
dry material volume change konjac, polyacrylamide.
After heating the air purification, introduced from the bottom induced draft fan through the hole hopper screen. In the studio, by mixing and fluidization negative pressure is formed, after the water is evaporated and removed Fast, Fast drying material.
| project | unit | 60 | 100 | 120 | 150 | 200 | 300 | 500 | |
| Production capacity | Kg | 30-60 | 60-100 | 80-120 | 100-150 | 120-200 | 200-300 | 300-500 | |
| Material container | diameter | mm | 1000 | 1000 | 1200 | 1300 | 1400 | 1600 | 1800 |
| Volume | L | 220 | 330 | 420 | 500 | 670 | 1000 | 1500 | |
| Fan | Wind | M3 /h | 2361 | 3488 | 4000 | 4901 | 6032 | 7800 | 10800 |
| Wind pressure | mmH2O | 594 | 533 | 533 | 679 | 787 | 950 | 950 | |
| power | kw | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 | |
| Mixing power | kw | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | |
| Stirring speed | r.p.m | 11 | |||||||
| Steam consumption | kg/h | 141 | 170 | 210 | 240 | 282 | 366 | 451 | |
| Operating time | min | 15-45(depending on material availability) | |||||||
| Host height | Square | mm | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 |
| Round | mm | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 |
Main Features
1)fluidized bed is round structure, to avoid dead ends.
2)the hopper stirring to avoid agglomeration of raw material and forming canal of flow when dry.
3)use Overturning discharge, facilitate prompt and thorough,
4) Seal negative pressure operation, the gas through the filter.
5)drying speed, temperature uniformity, each batch of drying time is generally 15-45 minutes.
Machine Parts

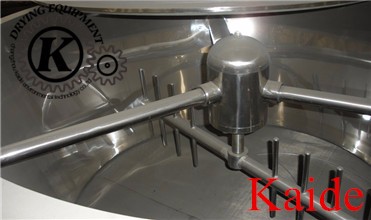

Name: Stirring device
Brand: Kaide
Original: China
Stirring device is drived by the motor,it is used for stirring the wet product during the drying process,which can avoid the wet material blocking.
Main Parts

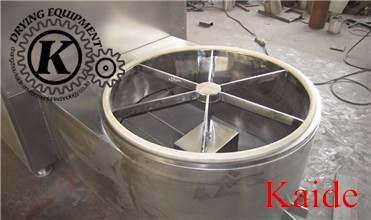

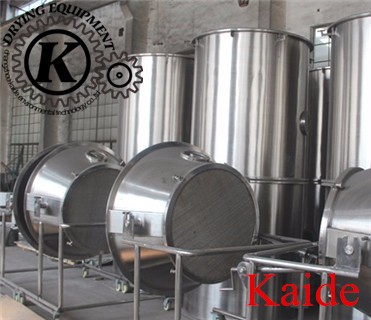

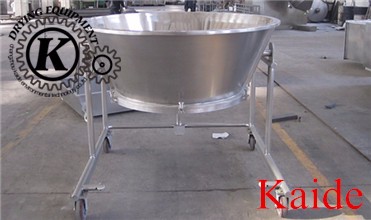

Name:Fluid-bed trolly
Brand:Kaide
Original: China
The fluid-bed drying trolly is made of stainless steel,which is easy for operating,doing feeding and discharging.After the working ,use the clean water to wash it.
Machine Parts
Name: top up device
Brand: Kaide
Original: China
The top up is made by the pressed air cylinder,which can make the whole drying chamber under the sealing condition.the sealing trip is made of silicon.
Main Parts

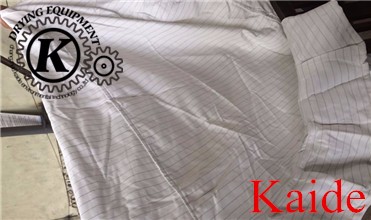

Name: Filter bag
Brand: Kaide
Original: China
Filter bag is made of non-woven fabric,which is resistance to electricity and oil.And it should be clean several times per week or month.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | 230(L)*120 (W) * 250 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Packaging | |
| Size | 230(L)*120 (W) * 250 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
