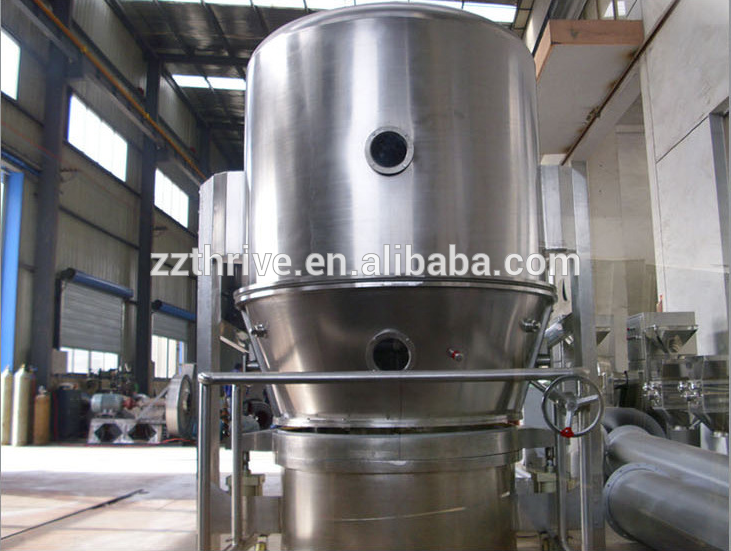

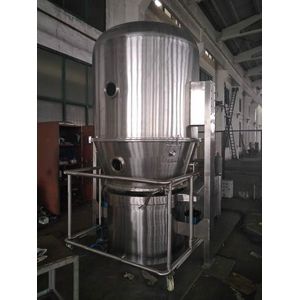

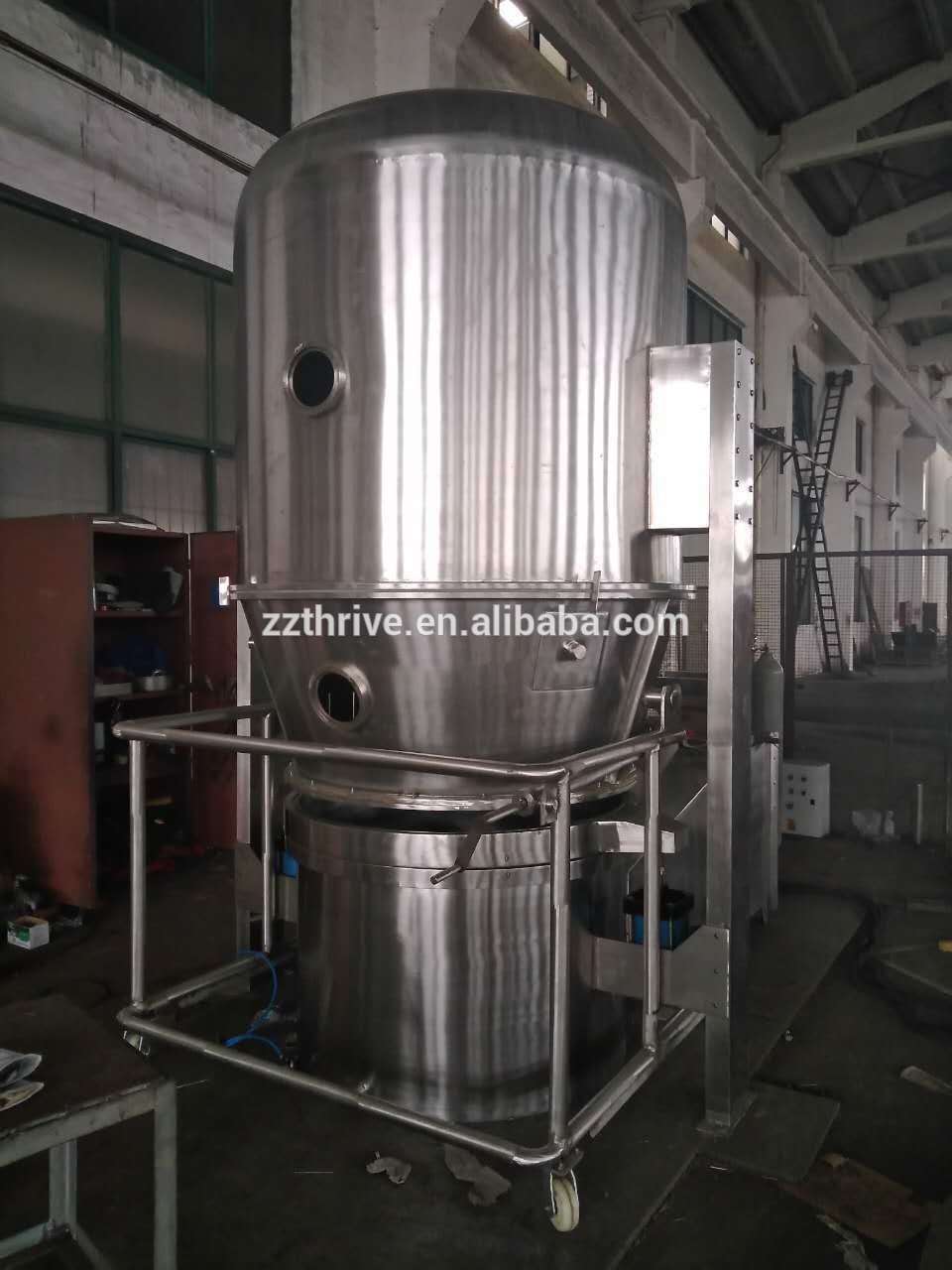

Fertilizer Product Type GFG fluid bed dryer,GFG Model Whey Protein Powder drying machine
A.Introduction of Fertilizer Product Type GFG fluid bed dryer,GFG Model Whey Protein Powder drying machine

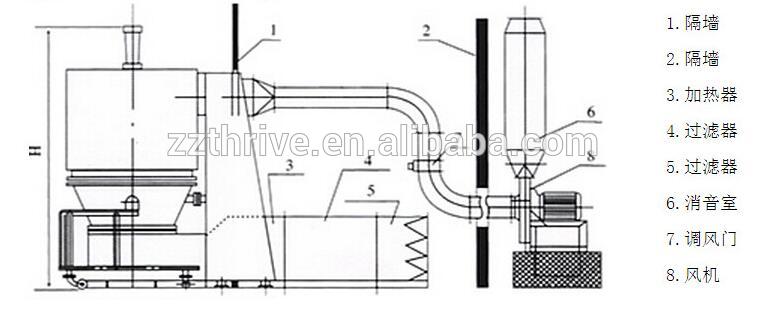

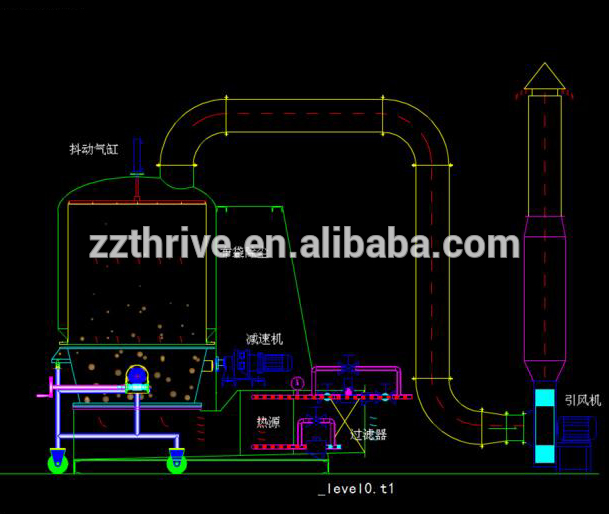

GFG type efficient fluid bed drying machine is made of air filter,heater,host,materia car,cleaning room,connecting duct,fan and other components.Due to different nature of dry materials,when supporting dust removal equipment,can be considered as needed.

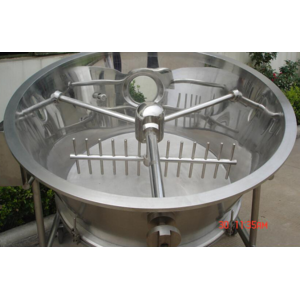

This machine using a unique spherical mixing mechanism,keep the transmission balance,no accumulation.Cleaning with a single cylinder timing bag method,clean thoroughly.Muffler reduces fan noise and can effectively improve the working environment.
B.Principle:
After the air is heated and purified, it is introduced from the lower part into the hole plate through the hopper. In the studio, the formation of fluidized by the stirring and negative pressure, After the rapid evaporation of water,it takes the exhaust away, the material was dried quickly .
C.Features OF Fertilizer Product Type GFG fluid bed dryer,GFG Model Whey Protein Powder drying machine
1.Sealed negative pressure operation according to GMP specification design
2.Safe operation, easy maintenance.
3.The hopper sets stirring equipment, avoiding damp material agglomeration.
4. Drying speed is quickly, temperature is uniformity.

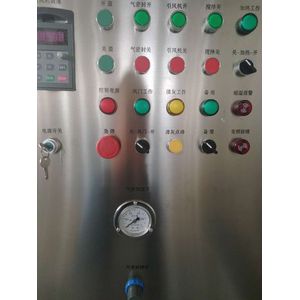

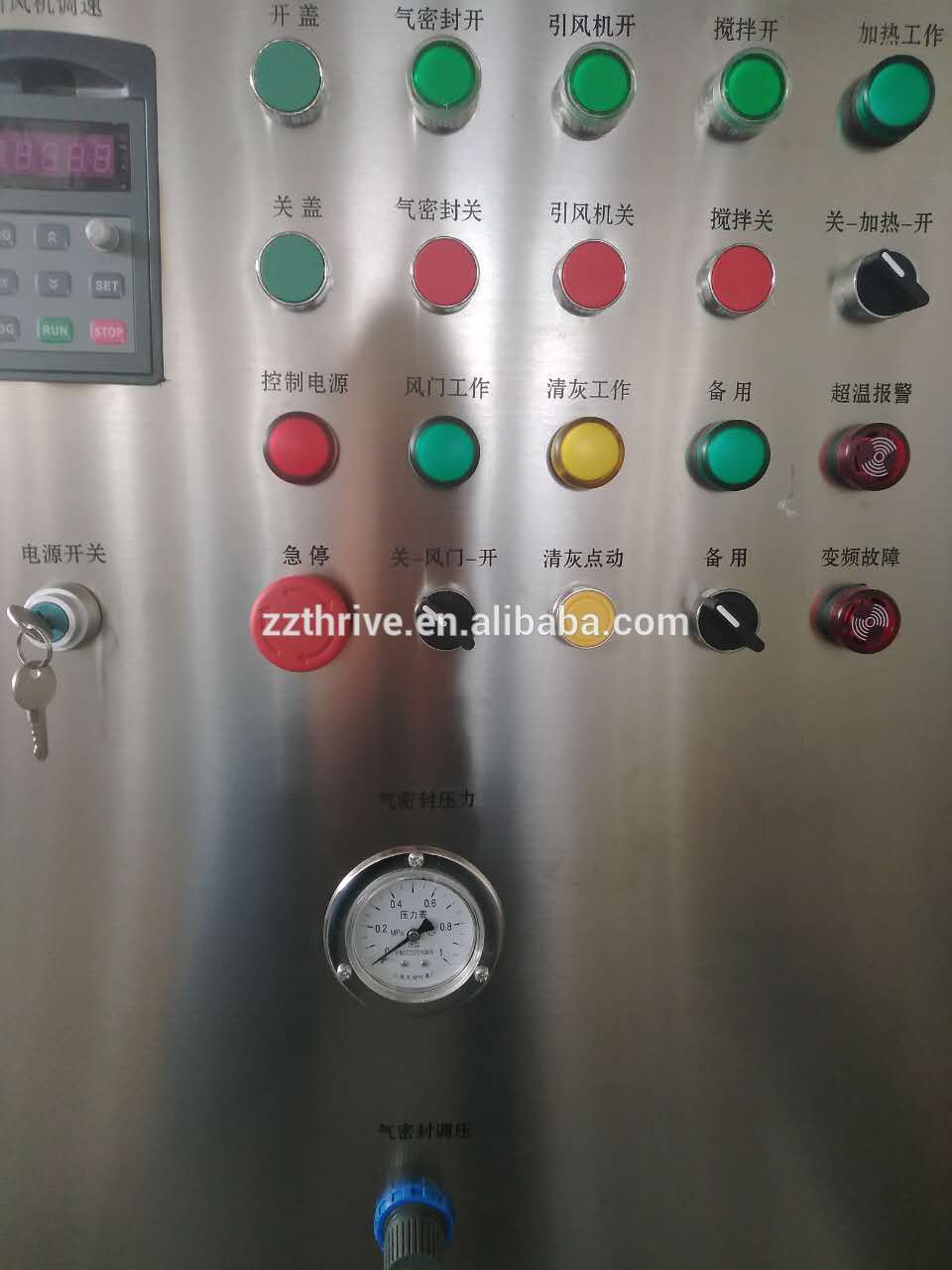

5. Heating is controled by the digital thermometer to control the inlet temperature, inlet and outlet can show the temperature.
C.Specification of Fertilizer Product Type GFG fluid bed dryer,GFG Model Whey Protein Powder drying machine
Model | GFG100 | GFG150 | GFG200 |
Induced draft fan Power | 15kw | 18.5kw | 22kw |
Reducer power | 0.55kw | 0.55kw | 0.75kw |
Electric heating system | 54kw | 63kw | 72kw |
Capacity | 100kg | 150kg | 200kg |
Material | SS304 | SS304 | SS304 |
Mixing speed | 11r/min | 11r/min | 11r/min |
Dimension(mm) | 1500*2800*2700 | 1600*3000*2900 | 1700*3200*3100 |

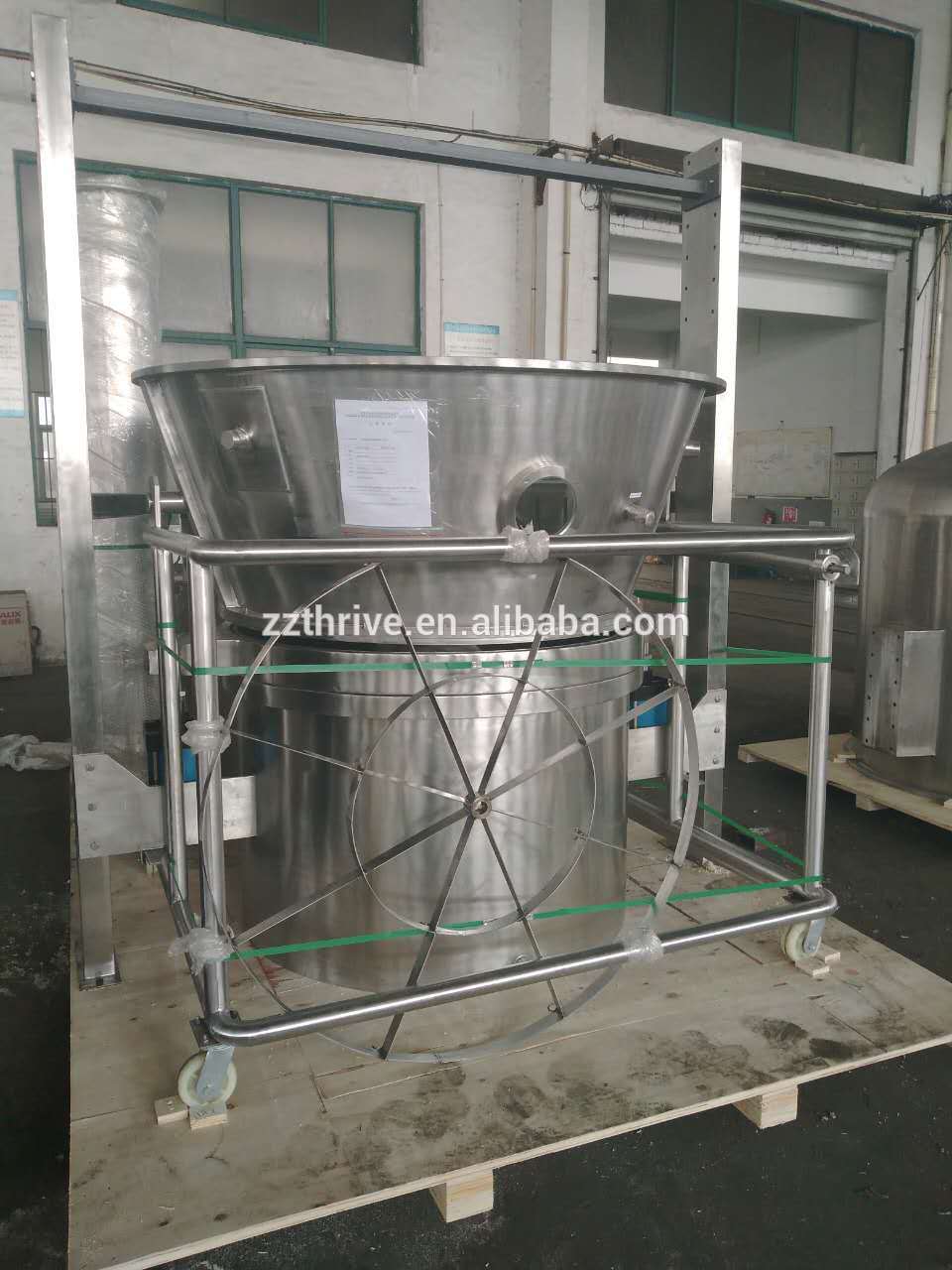

Package :Our machines are putted in strong wooden cases.
Delivery time : within 3-15 working days after receiving the down payment.
