Product Description
| MODEL | GFG-60 | GFG-120 | GFG-150 | GFG-200 | GFG-300 |

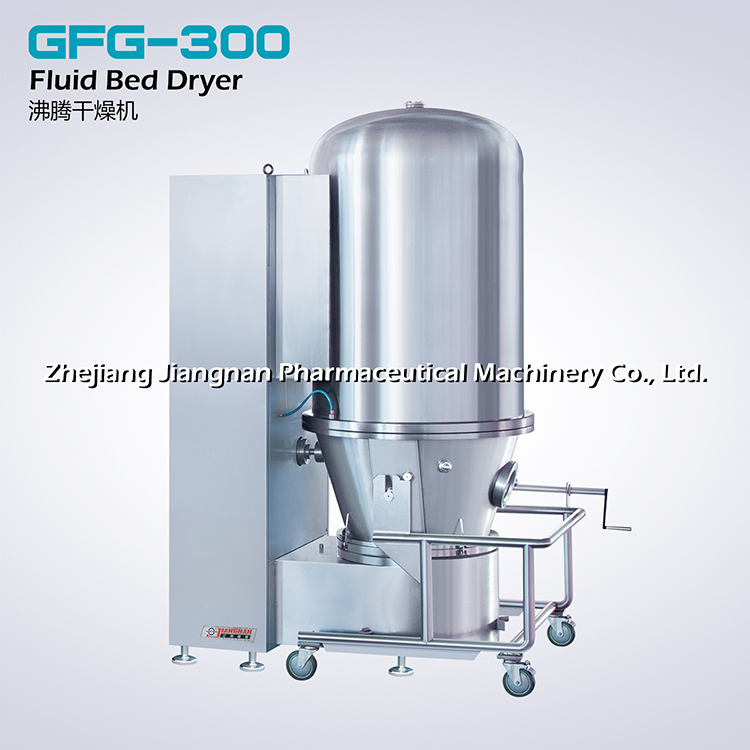

High Efficiency Boiling Dryer is suitable for drying damp granule or powder material in many such as pharmaceutical industry, chemical industry, feed stuff industry, light industry, etc. It is suitable for drying big granule, small mass, viscosity, black material produced by HLSG damp method mixer gratulatory, giant arum, acrylic acid amide, etc. Materials that have big volume change.
Working Principle:
After the air is heated and purified, which was taken to container by air motor. Then through screen plate under the action of stirring and negative pressure, forming fluid, connecting between large area and solid. The water of the material (solid) is vaporized rapidly and taken away by air exhaust pipe, then reach the standard of drying the material.
Characteristics:
* Adopt gasbag-style airtight in its material container.
* Its fluid-bed is round structure. So it avoids dead corner.
* There is stirring device in the container, avoiding the joining of wet material and agglomeration forming during the drying course, which can make the material even and speedy dry.
* The cloth bag filter at top is made from anti-static special fiber. The operation is safe.
* Operated at sealed negative pressure and designed by GMP normal.
* Quick drying speed, uniform temperature. In general, the drying time each batch is about 20-30 minutes.
Sale Region & Field
Sales Regions and Fields
1.Europe,Australia,America,Asia and etc.
2.Pharmaceutical,food and biological fields, and etc.

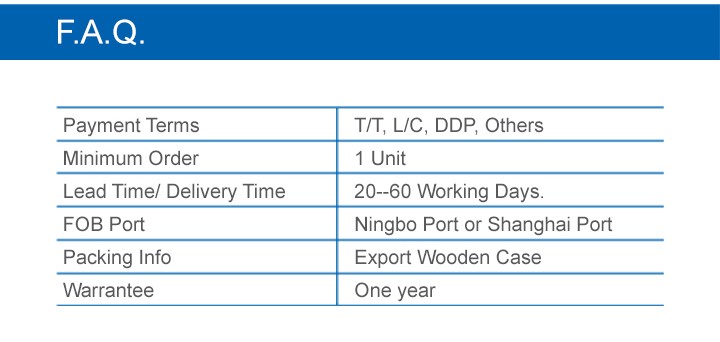

Business Terms
1.Delivery time : 45days
2.Port:Shanghai or Ningbo
3.Terms of Payment: TT or L/C
Quality & Service
Honor:
Sin-tech Spark Project of Zhejiang Province
The Brand-new and Quality High-tech Product of Zhejiang and National New Product GMP and the certification of EU
