1.35 square meters ZLG series vibrating fluid bed VFB dryer

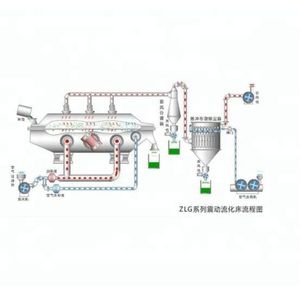

Working principle:

Raw material is feed into the machinefrom equipment inlet and move forward continuousely along with the horizontal direction under vibratory power. The hot air passes through fluidized bed and exchange with raw materials' damp, then the wet airis dusted by cyclone separatorand exhausted from air outlet, the dried material is discharged through finished material outlet.

Scope of application:

Pharmacy and chemical industries: all kinds of granular tablet and granule, boric acid, borax, hydroxybenzene, malic acid, etc.

Foodstuff and construction industries material: lees, monosodium glutamate, edible sugar, edible slat, mine residue, beans, seeds etc.

It can also be applied for raising material damp or cooling raw material.

Features:

1, Raw material is heated uniformly, heat exchanging is sufficient,

    drying capacity is high, compared with ordinary drier, it can save energy up to 30%.Suitble for industrial use.

2, The vibration is driven by vibratory electic device, it has those benefites:stable operation, convenient maintenance, low noise and durable.

3, Fluidized state is stable, no dirty corner and no broken out situation.

4, Easy regulation and wide suitability. Inside the machine, raw material's thickness and moving speed and amplitude change can be adjusted smothly.

5,Small damage to raw material's surface, this equipment can be applied for drying easy broken materials, raw material's anomaly shape can not affect drying effect, operation environment is clean.

6, Raw material and air cross pollution are effectually prevented by using fully sealed structure. Drying environment is very sanitary.
