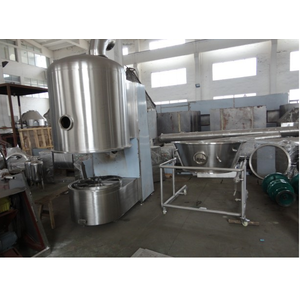

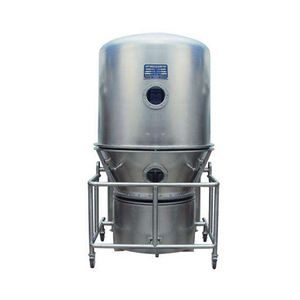

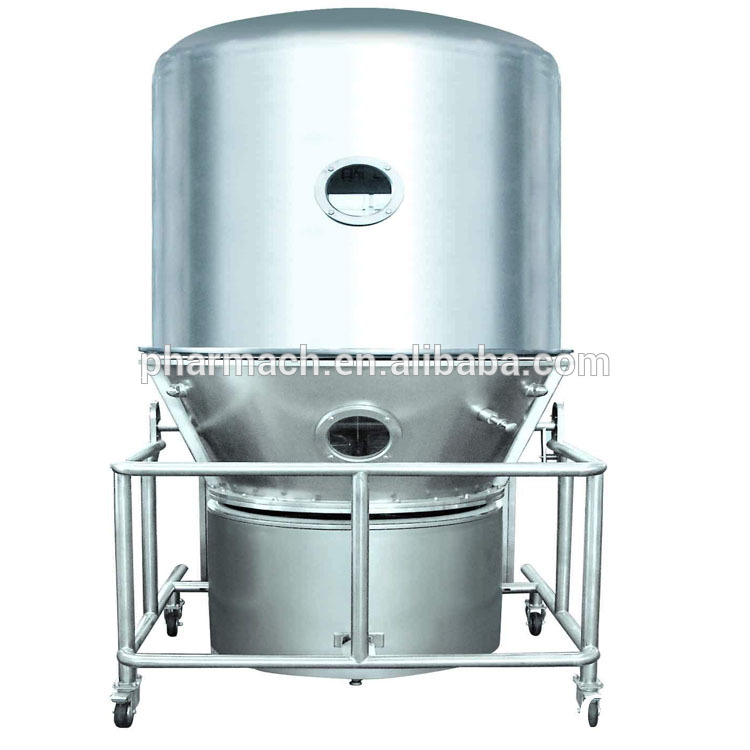

60kg fluid bed dryer PRICE for pharmacare, foodstuff and chemical product
Application:
The machine is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and so on industries
Feature:

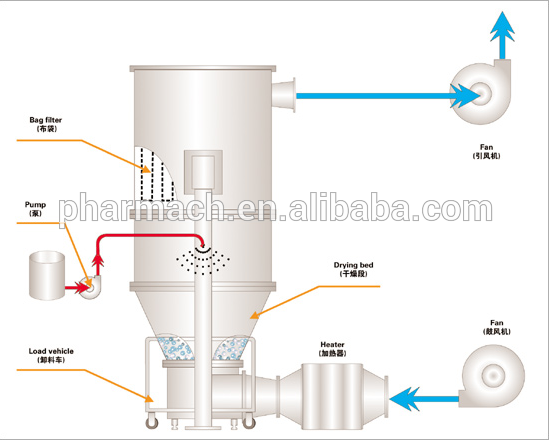

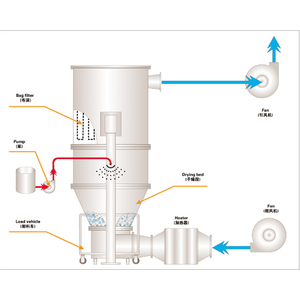

Fluid bed to achieve fast heat transmission of medium. Seal negative pressure operation, there is no dust. Because of using anti-static material as filter, it is safe in operation; The equipment has no dead corner so it is easy to clean fully and there is no cross pollution; It is in conformity with the requirements of GMP.
Technical parameters
Spec | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
item | unit | ||||||||||
container raw material | dim | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
production capacity | min | Kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
Max | Kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
consume of steam | Kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
amount of compressed air | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
temperature | ℃ | Adjustable from ambient to 120 | |||||||||
collection rate | % | >99 | |||||||||
time of operation | min | 15-30 (depends on material) | |||||||||
content of final product | % | ~0.2 (depends on material) | |||||||||
noise | db | ≤75 | |||||||||
height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 |
Shipment within 45 days
In Standard exporter wooden case
We ,Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate.
We can provide with technical support in case of any question on fix or operation our purchased equipment at any time.
Also, we can send our technical engineer to user's factory for installation & training worker on how to use exactly at user's account for necessary charges in regulation.
Manufacturing room view:
Customer production room:
