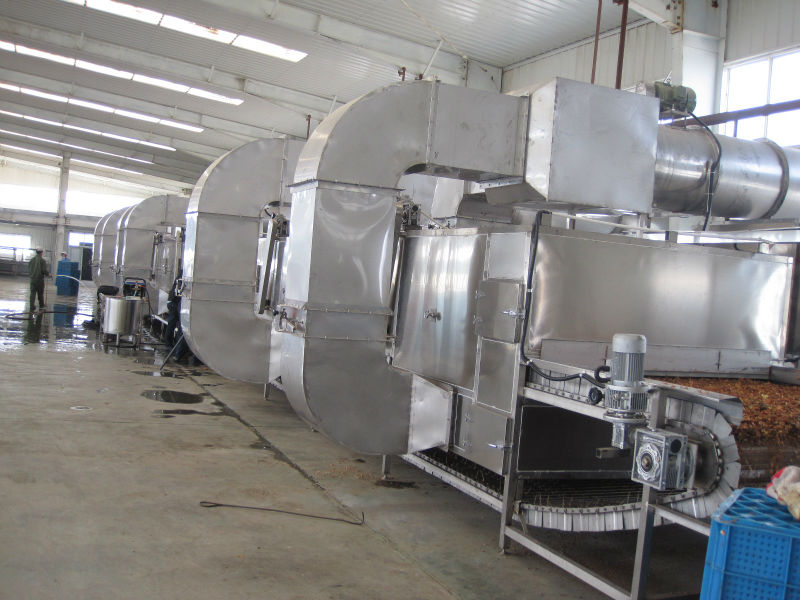

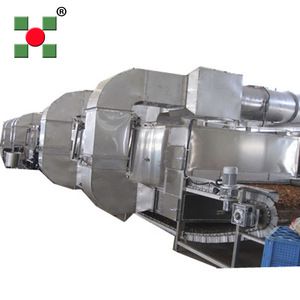

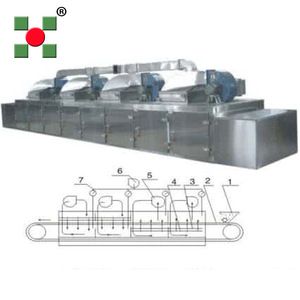

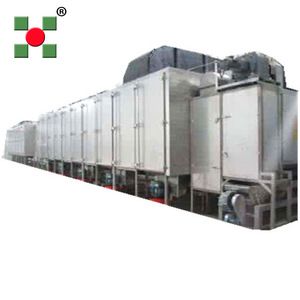

Fluid bed fruit and vegetable dryer/vegetable and fruit belt drying machine/Conveyor belt dryer
Vegetable dryer is based on years of experience accumulated by our company and integrated the advantages of advanced equipment abroad. The whole equipment is manufactured with stainless steel accord with the exporter foodstuff sanitation standard exactly. The processing line is scientific designed,well manufactured,reasonable layout, reliable running,and high-robotization which is widely used in the vegetable dewatering.
Sutiableproducts:cabbage,cauliflower,spinach,greenfrocery,scallion,garlic, bean sprout, carrot, agaric,ginger, kelp ect..
Daily output 1-10 tons according to the customers requirement
belt drying machine is suitable for drying garlic, ginger, carrot, potato, bean, chestnut, almond,
traditional Chinese medicine materials, shelled shrimp and other granular materials.
Type | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | |
Quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | |
Belt width(m) | 1.2 | 1.6 | 2 | ||||
Length of drying section(m) | 8 | 10 | 8 | 10 | 8 | 10 | |
Thickness of raw material(mm) | ≤60 | ||||||
Operation temperature(°C) | 50-140 | ||||||
Steam pressure(MPa) | 0.2-0.8 | ||||||
Steam consume(kg/h) | 120-300 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 | |
Drying time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | |
Drying strength(kg/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 | |
Power equipped(kw) | 11.4 | 13.6 | 11.4 | 13.6 | 14.7 | 15.8 | |
Overall dimensions | L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 |
W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | |
H(m) | 2.3 | 2.3 | 2.4 | 2.4 |
Product shows
Located in Shangyu city, China, founded in 1995, Shangyu Xinye Foodstuff Machinery Co., Ltd. is a professional food machinery manufacturer with a registered capital of RMB10 million. We passed the evaluation of ISO9001:2000 certification in 2002. Our company has more than 200 employees. Our main products are quick-freezing equipment, pretreatment processing lines , drying machines, air coolers, evaporation condensers, ect. We design, produce and install all kinds of refrigerators. Our equipment is widely used for quick-freezing, deep processing of aquatic products, fruits & vegetables, poultry products, prepared food ect. Owing to all Xinye people's efforts, our fine quality and perfect after-sales service have gained customers' approvals. To keep high quality of all equipment, we have set up extensive relationships with many famous researching institutes in China. We have a strong service team at high technological level. Our products have already formed a mature market in China and are also exported to Vietnam, South Korea, Japan, Russia and Pakistan ect. We are willing to set up good business relationships with customers from all around the world. You are warmly welcomed to contact us.
1,Client effect balance payment before shipment
2.Supplier send original documents or telex release the goods
3,Quality warranty for 1 year after install the machines
Certification And Work Shop
1.Capacity: our machines are custome-made, the capacity depend on customer's request. different capacity different machine size.
2.Material: Make of Stainless steel 304,except motor ,bearing,and some metal parts.
3.Prepare parts:We'll supply some easy broken parts for all machines.
4.Voltage: As custoemers local voltage, customer should tell us before processing machines.
5.After sale: we'll help install and testing the machines,then we'll teach customer to operate the machines and repair them.
if have big problem ,we'll send engineer to customer side.
6.Service:All machines take lifetime service.
