oxidized starch plant machine

2 Our service is turn-key mode, which includes installment, debugging and train.

Technical Feature

  • New
  • Shandong, China (Mainland)
  • SHENGRUN
  • TSE70-D
  • modified starch
  • 220/380/415/440/480V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$22~32

PRIMARY PARAMETERS

Condition
New
Place of Origin
Shandong, China (Mainland)
Brand Name
SHENGRUN
Model Number
TSE70-D
Application
modified starch
Voltage
220/380/415/440/480V
Power(W)
as per final production line
Weight
as per final production line
Dimension(L*W*H)
as per final production line
Certification
ISO CE BV TUV SGS
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
WARRANTY
1 YEAR
MANAGER
MS Yolanda Zhang
OUTPUT
240-260kg/h
MATERIAL
STAINLESS STEEL
MOTORS
all brands(based on your requirement)
processing type
screw type extrusion
heating type
electric

DETAIL DESCRIPTION



Product Description



1. Modified starch, also called starch derivatives, are prepared by physicallyenzymatically, or chemically treating native starch, thereby changing the properties of the starch. Our company machines can make modified starch with screws extrusion method. The finished product is also called pregelatinization starch, which can be used in food, pharmaceuticals, paper, building material, casting, oil drilling industry. This production line includes mixing, extruding, drying and conveying system. The extruder has one couple of high hardness alloy steel screws.



2. The model is TSE70-PS, the output is 240-260kg/h.



3. Extruder screws quantity is two.



4. The main body material is stainless steel, which is easy to be cleaned.



5. The screws material is 38CrMoAl, which is wear-resisting.



6. The processing line needs two workers to operate.



7. We advice the plant area is no less than 110 square meters, the length is no less than 22 meters.



8. Process flow: (Raw material)---mixing---conveying---extruding & puffing---conveying---drying--- (milling---packing)

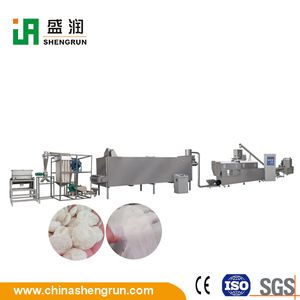

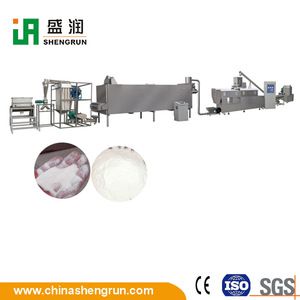

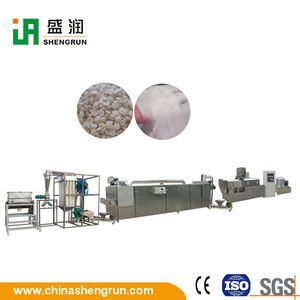

9. Equipments: Mixer---Screw conveyer---Extruder---Air conveyer---Dryer--- (Grinder---Packing machine)



10. The temperature and rotating speed can be controlled and adjusted.



11. The processing line has self-cleaning function.





12. Parameters:

Equipment name

Mixer

Screw conveyer

Extruder

Air conveyer

Dryer

Grinder

Model

BFJ

LXSL

TSE70-PS

FSJ

KX-5

FSJ-480

Total power (kw)

5

0.75

40.75

1.1

45

18

Actual Power (kw)

3

0.5

22

0.8

35

15

Output (kg/h)

300

300

240-260

300

260

500

Size (m)

1.0×0.7×1.4

3.3×0.8×2.3

2.8×0.9×1.9

2.5×0.6×0.6

8.0×1.3×2.7

0.9×0.8×2



Our Services



1 The warranty period is one year.
2 Our service is turn-key mode, which includes installment, debugging and train.
3 Supply quick-wear part and general tool.
4 Supply the basic formula of raw materials.





Company Information



Jinan Shengrun Machinery Co., Ltd. is a professional manufacturer of extrusion machinery.





Packaging & Shipping

  Inside package is plastic film,outside package is wooden case,which is seaworth.
