Automatic Waste Tire Recycling Rasper for Scrap Tyre

Shredwell RR series tire recycling rasper is specially designed to take wire out of pre-shredded tire chips and produce between 10-20 mm wire free rubber chips; it is the secondary shredder in whole tire recycling process.

Technical Feature

  • New
  • Tire Recycling Rasper
  • Jiangsu, China (Mainland)
  • Shredwell
  • RR315
  • Customer Request
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~50

PRIMARY PARAMETERS

Condition
New
Type
Tire Recycling Rasper
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Shredwell
Model Number
RR315
Voltage
Customer Request
Power(W)
315Kw
Dimension(L*W*H)
6220*2170*3560mm
Weight
24000Kg
Certification
CE ISO
Warranty
2 Years
After-sales Service Provided
Engineers available to service machinery overseas
Tire Recycling Rasper Motor
Simens
Cutting Chamble
700*1560mm
Blade Diameter
750mm
Hopper Opening
1730*880*910mm
Tire Recycling Rasper Input Material
Waste Tire, Scrap Tyre
Output Material
Rubber Mulch
Control System
Simens PLC and Schneider Component
Tire Recycling Rasper Color
Green and Orange
Auxiliary Machine
Conveyer
Output Size
10-30mm

DETAIL DESCRIPTION

Product Description

Shredwell RR series tire recycling rasper is specially designed to take wire out of pre-shredded tire chips and produce between 10-20 mm wire free rubber chips; it is the secondary shredder in whole tire recycling process.

More Details:
Shredwell RR series tire recycling rasper is used as the secondary shredder for primary size reduction of pre-shredded chips, its patented design allows it to separate the wire from rubber tires in the purest, cleanest form possible, allowing processors to generate revenue streams from both rubber and wire.

Main features:
*The rotor is manufactured and designed for minimum wear;
*Easily exchangeable blades and screens enable the possibility to maintain the machine efficiently;
*Screens with different hole sizes available for flexible production;
*The internal wear surfaces are lined with replaceable wear liners that are easily changed when worn. This exclusive feature of rasper eliminates the need for any maintenance welding and results in greater machine up time.

Rasper
RR315
RR135
RR90
RR75
Motor Specification
Electric-Siemens
Electric-Siemens
  Electric-Siemens
 Electric-Siemens
Power
 315Kw
135Kw
 90Kw
 75Kw
Voltage
as per request
 as per request
 as per request
 as per request
Cutting ChamberL*W (mm)
700*1560
 740*1200
 550*1000
 550*800
Dimensions L*W*H(mm)
 6220*2170*3560
2010*2560*4110
 2090*2180*4100
1990*1980*4100
Equipment Weight
 24000Kg
 13500Kg
 9200Kg
 8500Kg
Hopper Opening L*W*H(mm)
1730*880*910
 1410*910*1410
 1190*710*1250
980*700*1260
Capacity
3-6T/H
1.5-3T/H
1-1.5T/H
700Kg-1T/H
Final Product
 10-30mm
 10-30mm
 10-30mm
 10-30mm

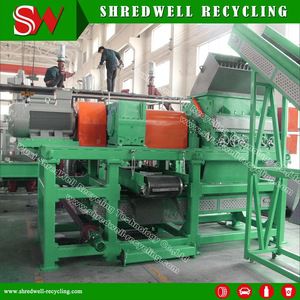

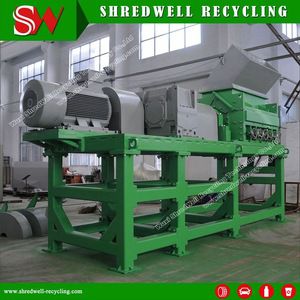

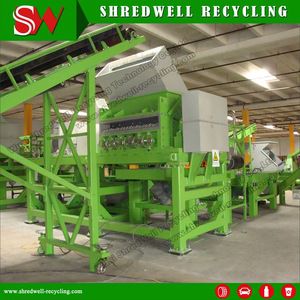

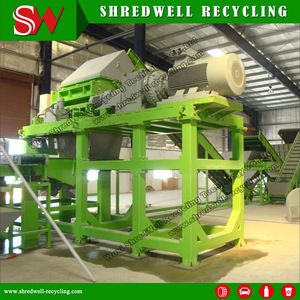

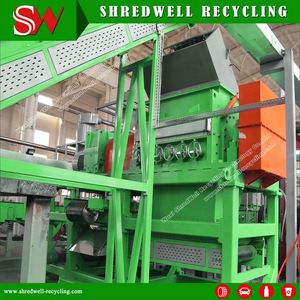

Detailed Images
Packing & Delivery

1.A layer of plastic wraps to protect machine from duct, moisture and corrosion.
2.Tire recycling rasper by wooden case is used as the outside package. Or according to the customer requirements.
3.Excellent logistic team to guarantee the cutter to be safely shipped to customer warehouse, no extra fee on export or import on custom.

Our Service

Pre-sale support
*Shredwell is composed of experienced specialists, our sales are engineers too, we will offer a suitable solution according client's requirements in time and 24 hours service is probided.
*On-site inspection

After-sale service
*Production process follow up, on-processing products' pictures and technical report are supplied regularly to make sure the contracted production schedule.
*Shredwell skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Shredwell technical. Dimensional drawings together with service requirements will be provided to delivery of tire recycling rasper which make time for our customer to prepare the site and commence production in time.

Technical support
*Shredwell tire recycling rasper enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.

FAQ

1) Are you a factory or trade company?
We are professional recycling shredder factory with the modernized management and quality control system, experienced production team, advanced manufacturing and processing facility. Export proportion around 50%. .

2) How can I trust your company?
a. modernized management and quality control system, experienced production team, advanced manufacturing and processing facility.
b. famous brand component as our standard configuration, like Siemens Motor, Tongli or SEW reducer, Siemens PLC and Schneider component. All parts processing by CNC machining to warranty the precision.
c. Assessed by third party-national test centre. national patents for all equipment, also CE, ISO.
d. Welcome to inspect anytime. We are near to Shanghai airport.
e. About the machine, we do much better on:Wear plates, seals, structure design, pressure head.

3) How about the tire recycling rasper test running & installation?
Before the order, welcome you to come to testing all machines in our factory, we have ready machines all the time.
Before shipping out your machines, we will invite you to come to test your machines, when you are satisfied; we start to pack and delivery.
We will send our enginer team(At least one mechanical engineer and one electrical engineer) to your country to help you to install the machine, and commission as well as training your workers.

4) Any warranty?
Under the proper usage, 1-3 year for whole tire recycling rasper.


5) Is your tire recycling rasper price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.

Our Company

 Wuxi Shredwell Recycling Technology Co.,Ltd is an integrated enterprise that is committed to developing, designing, manufacturing, selling and installing recycling machinery. Our tire recycling rasper is based on self-owned intellectual property and has advanced European and American technology.

Shredwell has now been in the shredding and recycling industry for more than 10 years. Our engineering team has around 15 years experience in designing and manufacturing shredding and recycling systems for scrap tires,scrap metal,waste wood,plastic...Our workforce has more than 5 years experience in manufacturing shredding machinery.Our company has advanced technologies, an experirenced workforce and excellent innovative management systems designed to manufacture safe, energy-saving, stable and reliable shredding machine systems.

Shredwell is located in Wuxi, China, covering an area of more than thirty thousand square meters, and has a modernized technology center and all kinds of processing and testing equipment with more than 100 experienced staff including over 30 professional engineers. Our main focus is to provide our customers cost-effective tire recycling system, metal recycling system, wood recycling system,e-waste recycling system, solid waste recycling system etc.

Our experienced after-sales service team can ensure the most timely installation, testing and training in the customer's workshop. Our mission is to provide our customers the best recycling solutions with high quality service and technology.
