A professional manufacturer of 27 years of experience
Features of vibrating sifter
1.Pass ISO9001:2000
2.Environmental protect
3.The IP54 protection rank, F level insulation, though work 24 hours a day also can greatly extend the vibration motor's service life; motor can run in the bad environment.
4.Each high-frequency sieve is loaded with a piece of rack that makes the machine do random movement; height is adjustable, easy to operate but hard to damage.
5.There is no mechanical movement and easy maintenance and, in addition to electrical parts, the other parts are made of stainless steel.
Application
Vibrating sifter with high frequency developed and produced by our company, is of high efficiency, small oscillation amplitude but high screening frequency, low noise. There is a different working principle compared with ordinary screening device. Because of high frequency , it is able to destroy the tension on pulp surface, make small grain material vibrate at high speed on surface, able to accelerate to the separation of heavy organic minerals, increase the probability of material (smaller than separation degree) contact with screen hole. Thus this unique characteristic has created better separating condition that make the material (smaller than separation degree) pass the screen hole easily, especially the large proportion of grain and slurry, too.
Technical Parameters
Model | Power(KW) | Diameter of screen surface(mm) | Largest vibration force(N) | No. of screen layer |
CWH-450 | 0.25 | 420 | 3000 | 1 |
CWH-600 | 0.37 | 550 | 5000 | 1 |
CWH-800 | 0.55 | 760 | 8000 | 1 |
CWH-1000 | 0.75 | 930 | 10000 | 1 |

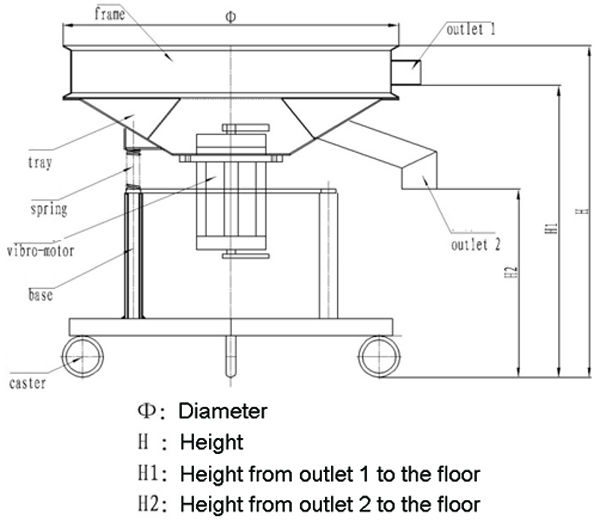

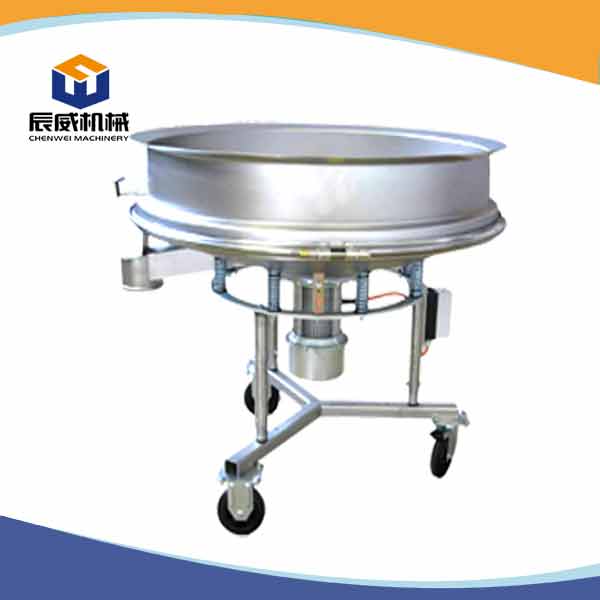

Machine structure and picture
ABOUT US
FAQ:
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of CWJX for most of our customers at home or abroad. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
As the professional manufacturer of vibrating & transporting equipments , we are pleased to offer you the best product in a competitive price.
Quotation of vibrating equipments in other type is also available, please feel free to contact us if you have any request.
