egg powder production machine
1.egg powder spray drying machine specification:
| Spray drying is the widest used technology in the liquid shaping technology and in the drying industry. Centrifugal Atomizing (Spray) Drying Equipment is most suitable for producing powder, particles or solid block products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, spray drying is useful to create the desired particle size, residual water contents, the stocking density, and the particle shape needed to meet precise standards |
2.egg powder spray drying machine Performance characteristics:
| 1 | Drying speed is fast, solid-liquid surface area greatly increased after the spraying in the hot air flow, the moment can be evaporated moisture of 95% -98%, and only a few seconds to complete the drying time,especially for heat-sensitive materials drying. |
| 2 | The product has good uniformity, mobility and solubility products of high purity, good quality. |
| 3 | The production process is simplified, convenient control. For special materials for a moisture content of 40-60% (90%) of the liquid can be dried into a powder or grain products,after drying without crushing and screening, to reduce the production processes, to improve product purity. |
| 4 | On product particle size, bulk density, moisture, within a certain range by changing the operating conditions to adjust, control and management is easy. |
3.egg powder spray drying machine Performance characteristics:
| Item | Specification |
| Water Evaporation | 5kg/h |
| Method ofAtomizing | High Speed Centrifugal Atomizer (mechanical drive or stepless frequency speed regulation is available) |
| Revolution of atomizer(rpm) | 15500 |
| Diameter of Atomizing disc(mm) | 60 |
| Dried Powder Recovery Rate (%) | Around≥95 |
| Length of Covered Area(m) | 1.6 |
| Width of Covered Area(m) | 1.1 |
| Height of Tower Body(m) | 2.2 |
| Hoisting height of Nozzle(m) | 1.8 |
| Air input Temp | 160~200℃ |
| Air output Temp | 70~90℃ |
| Tower Height | 1750mm |
| Induce Fan Power | 3 kw |
| Air Blower Fan Power | 2 kw |
Feeding pump power | 1 kw |
| Nebulizer Power | 2 kw |
| Vibrator air volume | 1CBM/min |
| E-Heating Power | 12 kw |
| Voltage | 380V 50Hz |

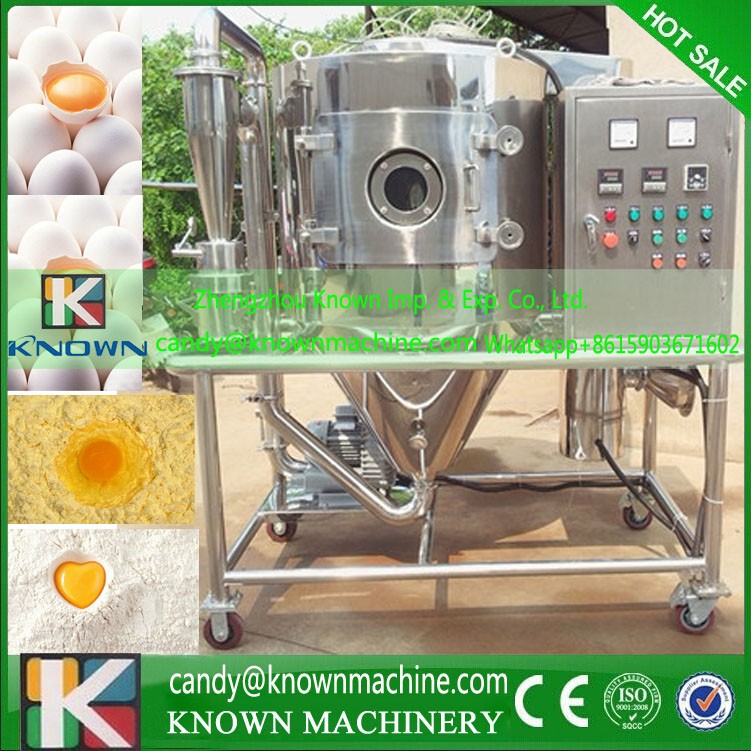

4.egg powder spray drying machine pictures:
Fresh egg separating machine packaging & shipping
| Packaging | International standard export non-fumigation wooden case |
| Shipping | Sea freight, air freight, Express(such as DHL,EMS,TNT,UPS etc.) |
Manufacturing service:
1. Provide goods according to customer need; |
2. Keep superior quality forever; |
| 3. Finish deal with resonable price. |
After-sales service:
| 1. Offer service for your project and factory building; |
| 2. Repaire & maintenance in the guarantee period; |
3. Spare and wearing parts provided for free or big discount; |
