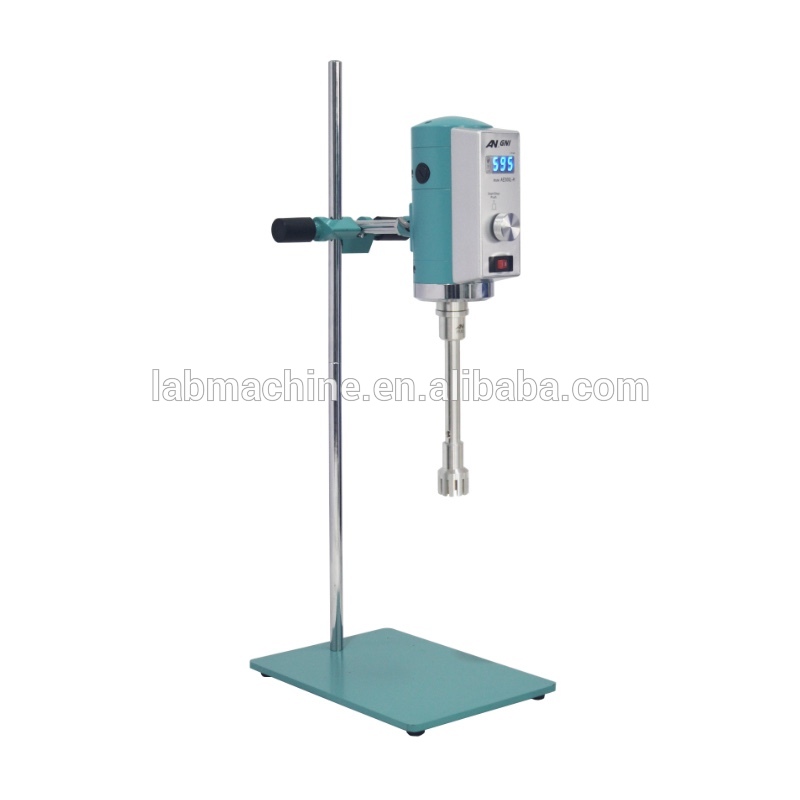

Laboratory Liquid Disperse Homogenizer AD300L-H
AD300L-H laboratory Homogeneous dispersion machine compact series wound micro-speed motor drive, suitable for laboratory experiments pulverized material is further dispersed in a liquid medium homogeneous. The machine is composed of high-density aluminum die-casting for the body of the host-driven, high-quality stainless steel refined homogeneous dispersion of the working head and speed frame and other components. Host driver has high speed, high output power, the working head loading and unloading convenient, easy to operate features such experiments.
| Model | AD300L-H |
| Voltage | AC 220V 50/60Hz |
| Input Power | 510W |
| Output Power | 300W |
| Nominal Torque | 96 N*cm |
| Speed Control | Continuous |
| Speed | 5000~18000 rpm |
| Timer Function | 1~1000 min |
| Max. Stator Torque | 92 N*cm |
| Stator Size | 28G, 36G |
| Working Ambient Temperature | ≤40℃ |
| Working Ambient Humidity | ≤90% |
| Machine Size | 215×310×720 mm |
| Machine Weight | 9.7 kg |

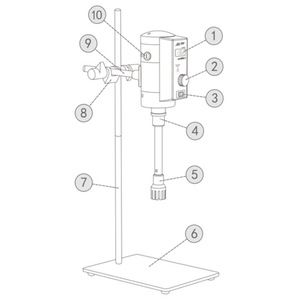

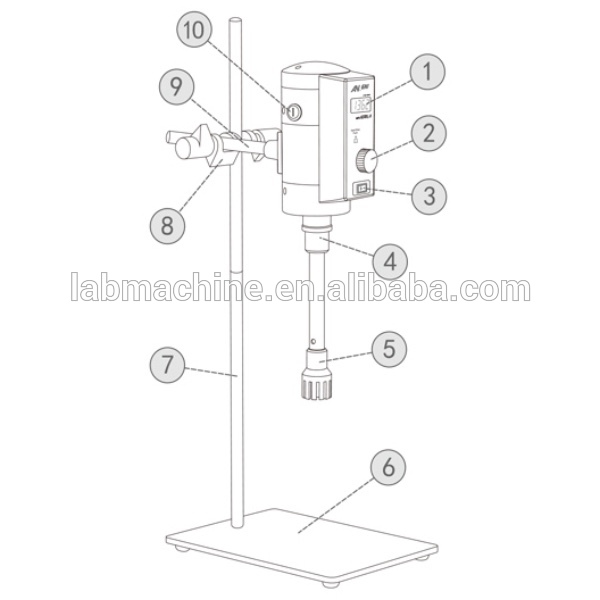

| 1 | Speed Displayer |
| 2 | Speed Control Nob |
| 3 | Power Switch |
| 4 | Clamping Chuck |
| 5 | Stator |
| 6 | Base |
| 7 | Standing Colum |
| 8 | Fixing Anchor |
| 9 | Holding Bracket |
| 10 | Electric Brush |

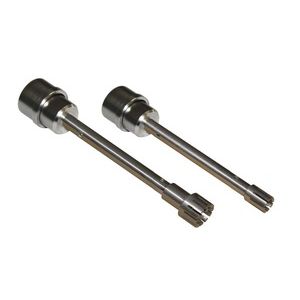

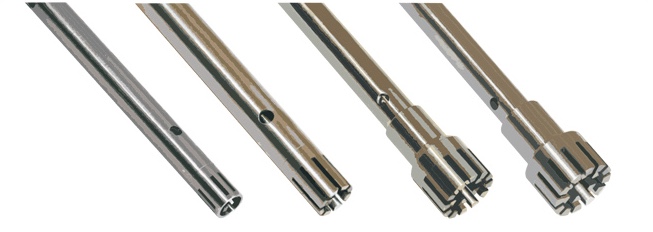

Different sizes of stators
AD300L series uses 28G and 36 by default.
| Stator Model | 12G | 18G | 28G | 36G |
| Max. Working Capacity(H2O) | 30~800 ml | 50~1500ml | 100~8000 ml | 150~13000 ml |
| Max. Working Viscosity | 1000 mPa.s | 2000 mPa.s | 6000 mPa.s | 7000 mPa.s |
| Max. Rotor Line Velocity | 11 m/s | 15 m/s | 19 m/s | 27 m/s |
| Min./Max. Liquid Immerse Height | 25/85 mm | 30/120 mm | 60/155 mm | 60/160 mm |
| Stator Diameter | 12 mm | 18 mm | 30 mm | 36 mm |
| Length | 150 mm | 190 mm | 235 mm | 240 mm |
| Max. Working Temperature | 120℃ | |||
| Stator Material | SS304 | |||
| Stator Bearing Material | PTFE |
