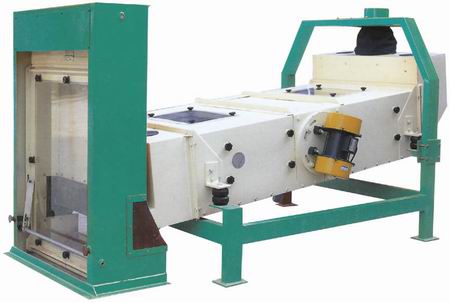

TQLZ series vibrating cleaning sieve

As vibration source, vibrating cleaning sieve features as the adjustable vibration amplitude, smooth operation, no overflow of the dust, firm and durable quality, ideal effect of reemoving the impurity, etc. It can be used in the cleaning stages for grain

Technical Feature

  • Adjustable vibration amplitude
  • Smooth operation
  • No overflow of the dust
  • Firm and durable quality
  • Ideal effect
  • High-quality
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~20000

PRIMARY PARAMETERS

Brand name
Green dragon
Application
Grain
Process input material
Paddy, wheat, corn , sunflower seeds
Process output material
-
Place of origin
China
Equipment material
SS & CS
Power (kW)
Depends
Weight (kg)
Depends
Outer dimension (mm)
Depends
Warranty
One year
Delivery
30 days
Main spare parts
-

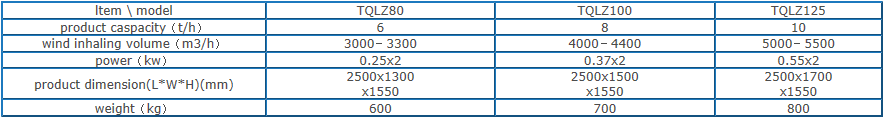

MODEL SPECIFICATIONS

Model TQLZ80 TQLZ100 TQLZ125
Capacity(t/h) 6 8 10
Wind inhaling volume(m3/h) 3000-3300 4000-4400 5000-550
Power(kw) 0.25*2 0.37*2 0.55*2
Dimension(mm) 2500*1300*1550 2500*1500*1550 2500*1700*1550
Weight 600 700 800

DETAIL DESCRIPTION


TQLZ series vibrating cleaning sieve


As vibration source, vibrating cleaning sieve features as the adjustable vibration amplitude, smooth operation, no overflow of the dust, firm and durable quality, ideal effect of reemoving the impurity, etc. It can be used in the cleaning stages for grain warehouse, mills, feed grain process factory and oil factory to remove impurity and barnyard grass from paddy, wheat, corn and sunflower seeds. In addvtion, it can also be used in the grading of intermediary and final rice products.
